Industrial Magnetic Separators: Types, Applications & Supplier Selection Guide

An industrial magnetic separator is a device that removes ferrous contaminants such as iron particles, bolts, and scale from dry bulk materials, wet slurries, or powder flows. These separators protect downstream equipment like crushers, mills, and reactors, and help achieve product purity specifications of iron content below 0.01% or less than 1 ppm for battery-grade materials. Weifang Yuansheng Magnetic Electromechanical Equipment Co., Ltd., a high-tech enterprise founded in 2011, specializes in the R&D, manufacturing, and sales of magnetic and electrical equipment. The company produces a full range of industrial magnetic separators, including Permanent Magnetic Separator, Electromagnetic Separator, Cross-Belt Magnetic Separator, Powder Magnetic Separator, Slurry Magnetic Separator, High Gradient Magnetic Separator, Lithium Battery Material Magnetic Separator, Dry Powder Magnetic Separator, Liquid Magnetic Separator, and Suspended Magnetic Separator.

Why Industrial Magnetic Separation Matters

Ferrous contamination can cause equipment damage, product defects, and safety hazards. In industries such as mining, metallurgy, chemicals, food processing, ceramics, battery materials, recycling, and power generation, effective magnetic removal is critical. Operating conditions range from -20°C to 300°C and include dry bulk, wet slurry, powder flow, pneumatic conveying, and belt conveying. The goal is to remove impurities like mechanical iron and partial ferric oxide (Fe₂O₃) while maintaining high throughput.

Understanding the Two Main Technologies

Industrial magnetic separators fall into two broad categories: permanent magnetic and electromagnetic.

Permanent magnetic separators (e.g., RCYB series) use NdFeB rare earth permanent magnets with high remanence and high coercivity. They require no external power for the magnetic field, making them energy‑efficient and suitable for continuous duty. Standard models offer magnetic field strengths from 45 mT to 70 mT, with optional high‑strength types T1 (90 mT), T2 (120 mT), and T3 (150 mT).

Electromagnetic separators (e.g., RCDA series) use an electromagnetic coil with a high‑permeability iron core. They can achieve higher magnetic field strengths (e.g., ≥70 mT in standard versions) and are adjustable via excitation control. These units require a power supply (typically AC380V 50Hz) and include cooling systems (air‑cooled, oil‑cooled, or water‑cooled). They are ideal for applications where very high magnetic forces are needed or where the material burden is thick.

Key Product Families

Suspended Magnetic Separators

The RCYB manual‑cleaning suspended permanent magnetic separator and the RCY‑Q light‑duty overband separator are designed for belt conveyors, vibrating feeders, and chutes. Applicable belt widths range from 400 mm to 2000 mm, with rated suspension heights up to 550 mm. The RCYD(C) self‑cleaning cross‑belt separator automatically discharges captured iron via a wear‑resistant rubber belt.

Powder and Dry Powder Magnetic Separators

For fine dry powders (8–120 mesh), draw‑type, rotary, and in‑line magnetic separators are available. The YSDC series is a fully automatic integrated dry electromagnetic powder iron removal system with magnetic induction up to 20,000 Gauss. It uses a magnetic matrix of magnetically conductive stainless steel mesh or plates, forced oil circulation water cooling, and PLC intelligent control. Production capacity ranges from 0.2 to 10.0 t/h, and the cleaning time for one iron discharge is only 10 seconds. The YSDCG series offers a magnetic cavity in vibrating state with field strength 18,000–20,000 Gauss.

Slurry and Wet Magnetic Separators

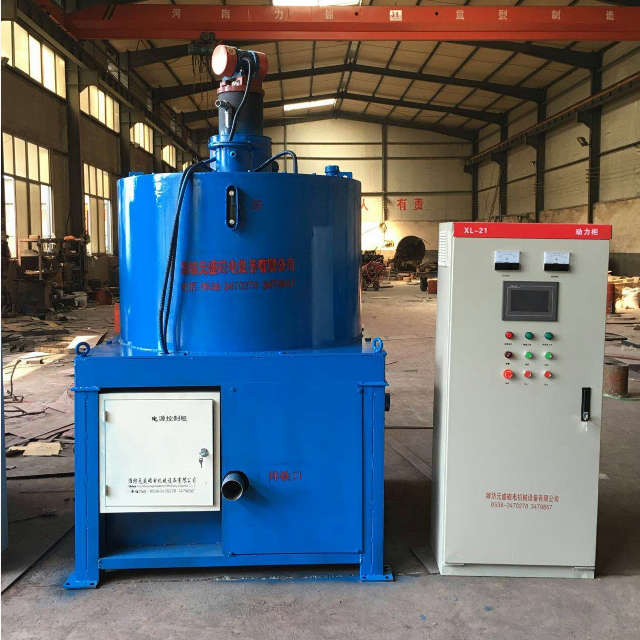

Wet slurry and liquid processing require high‑gradient electromagnetic separators. The YSDCS series wet electromagnetic slurry iron remover achieves magnetic induction of 16,000–20,000 Gauss and can process materials with concentration ≤30% and iron content ≤1%. The Electromagnetic King slurry iron remover provides up to 30,000 Gauss field strength and up to 98% iron removal efficiency, using 30 high‑permeability stainless steel plates as the magnetic matrix.

Specialized Designs

The RCY‑K armored belt separator handles sharp ferromagnetic contaminants in slag recovery. The RCGZ pipeline automatic permanent magnetic separator continuously removes tramp iron from pneumatic conveying lines with processing capacity up to 1,100 t/h. The RCT(RCTG) permanent magnetic roller (magnetic pulley) is a dry bulk separator that serves as both drive pulley and separator on belt conveyors.

Technology Comparison: Permanent vs Electromagnetic Separators

Source: Product specification sheets for RCYB-10 (suspended permanent) and RCDA-10 (air‑cooled electromagnetic) from Weifang Yuansheng.

Step-by-Step Selection Guide

1. Identify the material phase: Dry powder, wet slurry, or bulk solid on a belt?
2. Determine particle size and iron content: For fine powders (8–120 mesh) with iron content ≤1%, a dry electromagnetic powder separator (e.g., YSDC series) is recommended. For slurries, a wet electromagnetic separator with high gradient (e.g., YSDCS) works best.
3. Assess required magnetic field strength: Standard 70 mT suffices for many applications; high‑purity battery materials may require 20,000 Gauss (0.2 T) or more.
4. Choose cleaning method: Manual cleaning (RCYB) for low‑iron loads; automatic self‑cleaning (RCYD(C) or RCDC) for continuous operation.
5. Consider environmental factors: Temperature, dust, humidity, and corrosiveness affect material selection (304/316L stainless steel, IP54 protection).
6. Evaluate power and cooling: Permanent magnets use no power; electromagnetic units need excitation power and cooling (air, oil, or water).

Common Use Cases

• Lithium battery materials: YSDC series and Electromagnetic King powder iron remover for cathode/anode materials (LiFePO₄, NMC, graphite).
• Ceramics & glass: Dry powder and slurry separators remove iron from glaze, kaolin, quartz sand, and feldspar.
• Cement & mining: Suspended permanent and electromagnetic separators protect roller presses, crushers, and vertical mills from tramp iron.
• Food & pharmaceutical: In‑line magnetic separators (YSXD series) and drawer magnets ensure product purity in powder and liquid processing.

Frequently Asked Questions

Conclusion

Choosing the right industrial magnetic separator requires a clear understanding of the material, process conditions, and required purity level. Weifang Yuansheng Magnetic & Electrical Equipment Co., Ltd. offers a broad portfolio — from permanent suspended magnets for belt conveyors to high‑gradient electromagnetic systems for battery materials — backed by 45 employees, a 3,500 m² factory, and an annual output of 3,500 units. For a tailored recommendation or to download the full product brochure, visit our website or contact us directly.
