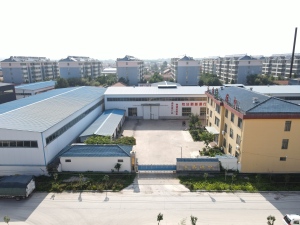

About Weifang Yuansheng Magnetic Electromechanical Equipment Co., Ltd.
Our main product portfolio includes various types of metal detectors, electric vibrators, electromagnetic iron separators, permanent magnetic iron separators, magnetic separators, conveyors, microcomputer metering equipment, cement microcomputer batching systems, and pre-water ball forming systems. These products are widely used across industries such as building materials, chemicals, metallurgy, mining, glass, ceramics, grain, and food processing. Thanks to their stable performance and reliable quality, our products have earned strong recognition and trust from customers.
Guided by the business philosophy of “Quality First, Reputation Foremost, Customer Priority,” we maintain stringent quality control and continuously improve our service capabilities. We strive to provide customers with efficient, stable, and durable magnetic and electrical equipment, along with comprehensive solutions. We warmly welcome both new and existing customers to visit our facility, inspect our operations, and discuss potential cooperation for mutual development.
Our Products
View All Products →

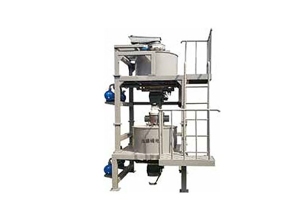

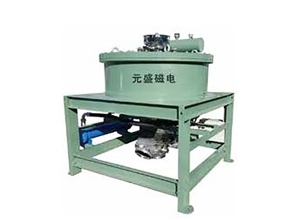

YSDC Series Dry Series-Type Electromagnetic Powder Iron Removal System
Model: YSDC-16, YSDC-16-T1, YSDC-16-T2, YSDC-20, YSDC-20-T1, YSDC-20-T2, YSDC-25, YSDC-25-T1, YSDC-25-T2, YSDC-30, YSDC-30-T1, YSDC-30-T2, YSDC-35, YSDC-35-T1, YSDC-35-T2, YSDC-40, YSDC-40-T1, YSDC-40-T2
Parameters: Magnetic Induction Range: 16000–20000 GaussExcitation Power Range: 3.9–24.5 kWProduction Capacity Range: 0.2–10.0 t/hInput Voltage: AC380V 50Hz, Three-phase four-wireAdapted Material: 8–120 mesh to fine dry powder, non-magnetic material, dry condition, iron content ≤1%Mainframe Weight Range: 850–3700 kg

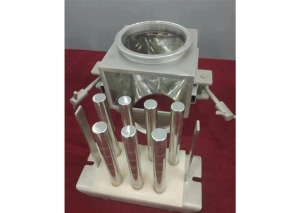

Drawer Type Magnetic Bar Iron Remover
Model: XPGD-100: Caliber 100 mm, 1–2 layers, Φ25 mm, 2000–12000 GS, capacity 15 m³/hXPGD-150: Caliber 150 mm, 1–3 layers, Φ25 mm, capacity 22 m³/hXPGD-200: Caliber 200 mm, 1–4 layers, Φ25/32 mm, capacity 35–50 m³/h
Parameters: Magnetic bar material: Rare earth NdFeB permanent magnetSurface magnetic strength: 3000–14000 GS, common 8000/10000/12000 GSMagnetic bar diameter: Φ25 mm, Φ32 mm, Φ50 mmLayer quantity: 1–5 layers, common 2–3 layers with staggered arrangementCenter distance: 50–150 mm, customized according to flow rateHousing material: SUS304 / 316L stainless steel, food and pharmaceutical gradeWorking temperature: ≤80°C (standard); high temperature type ≤200–350°CConnection type: ANSI/DIN/JIS flange, quick clamp, flexible connectionPressure resistance: Light duty 0.1–0.3 MPa; heavy duty ≤1.0 MPaProcessing capacity: 10–100 m³/h, determined by caliber and layersProtection grade: IP54, silicone sealing

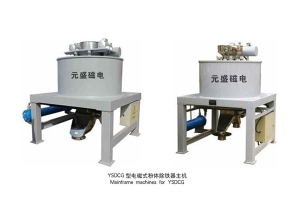

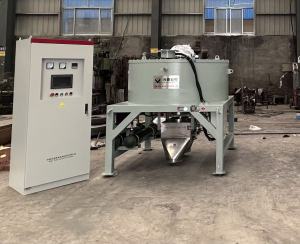

YSDCG Series Electromagnetic Powder Magnetic Separator
Model: YSDCG-16, YSDCG-16-T1, YSDCG-16-T2, YSDCG-20, YSDCG-20-T1, YSDCG-20-T2, YSDCG-25, YSDCG-25-T1, YSDCG-25-T2, YSDCG-30, YSDCG-30-T1, YSDCG-30-T2, YSDCG-35, YSDCG-35-T1, YSDCG-35-T2, YSDCG-40, YSDCG-40-T1, YSDCG-40-T2
Parameters: Magnetic Induction Range: 16000–18000 GaussExcitation Power Range: 3.9–19.6 kWProduction Capacity Range: 0.2–10.0 t/hInput Voltage: AC380V 50Hz, Three-phase four-wireAdapted Material: 8 mesh to fine dry powder, non-magnetic material, iron content ≤1%, dry conditionMainframe Weight Range: 550–2580 kg
RCYZ Series Pipeline Automatic Permanent Magnetic Separator
Model: RCYZ-100, RCYZ-150, RCYZ-200, RCYZ-400, RCYZ-600, RCYZ-800, RCYZ-1000
Parameters: Processing Capacity Range: 80–1100 t/hIron Removal Method: Continuous AutomaticRemovable Iron Particle Size Range: ≤30–200 mmMotor Power Range: 0.37–2.2 kWPower Supply: 380 VEquipment Weight Range: 350–2800 kg
RCYB Series Suspended Permanent Magnetic Separator
Model: RCYB-4, RCYB-4-1, RCYB-5, RCYB-5-1, RCYB-6, RCYB-6-1, RCYB-6-5, RCYB-8, RCYB-8-1, RCYB-10, RCYB-12, RCYB-14, RCYB-16
Parameters: Applicable Belt Width Range: 400–1600 mmSuspension Height Range (h ≤): 75–450 mmApplicable Belt Speed: ≤2.5 m/sMaterial Thickness Range: ≤30–400 mmWeight Range: 65–2850 kgExternal Dimension L Range: 400–1600 mmExternal Dimension D Range: 140–1600 mmExternal Dimension H Range: 125–460 mm

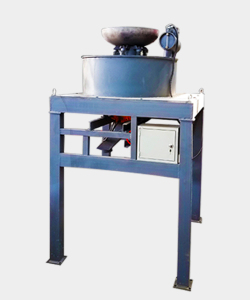

DCFJ Series Electromagnetic Powder Iron Separator
Model: DCFJ-150, DCFJ-250, DCFJ-300, DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Maximum Processing Capacity Range: 5–20 T/HWeight Range: 200–1400 kgFilter Mesh Outer Diameter Range: 145–295 mmMaximum Number of Filter Meshes: 13–15Insulating Oil Volume Range: 18–70 LControl Panel Dimensions (Standard Type): 300 × 400 × 540 mmControl Panel Dimensions (High Magnetic Force Type): 350 × 500 × 600 mm

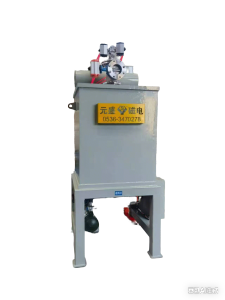

Electromagnetic Slurry Iron Remover
Model: YSDCS-16, YSDCS-16-T1, YSDCS-16-T2, YSDCS-20, YSDCS-20-T1, YSDCS-20-T2, YSDCS-25, YSDCS-25-T1, YSDCS-25-T2S, YSDCS-30, YSDCS-30-T1, YSDCS-30-T2, YSDCS-35, YSDCS-35-T1, YSDCS-35-T2, YSDCS-40, YSDCS-40-T1, YSDCS-40-T2, YSDCS-16-G1, YSDCS-16-G2, YSDCS-20-G1, YSDCS-20-G2, YSDCS-25-G1, YSDCS-25-G2, YSDCS-30-G1, YSDCS-30-G2, YSDCS-35-G1, YSDCS-35-G2
Parameters: Magnetic Induction Range: 16000–20000 GaussExcitation Power Range: 3.9–24.5 kWProduction Capacity Range: 1–20 t/hInput Voltage: AC380V 50Hz, Three-phase four-wireAdapted Material Fineness: ≤200 meshAdapted Material Concentration: ≤30%Adapted Material Iron Content: ≤1%Mainframe Weight Range: 750–3420 kg
RCDC Series Air-Cooled Self-Cleaning Electromagnetic Separator
Model: RCDC-5, RCDC-6, RCDC-6.5, RCDC-8, RCDC-10, RCDC-12, RCDC-14, RCDC-16, RCDC-18, RCDC-20
Parameters: Applicable belt width (mm): 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Rated suspension height h (mm): 150, 180, 200, 250, 300, 350, 400, 450, 500, 500Material thickness ≤ (mm): 100, 120, 150, 200, 250, 300, 350, 400, 450, 500Excitation power ≤ (kW): 1.2, 2, 3, 4, 6, 8, 12, 14, 20, 30Magnetic field strength ≥ (mT): 60, 60, 70, 70, 70, 70, 71, 71, 73, 73Drive power ≤ (kW): 1.5, 1.5, 2.2, 2.2, 3.0, 3.0, 4.0, 4.0, 5.5, 5.5Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Weight (kg): 1080, 1350, 1550, 2180, 3390, 4160, 5500, 6900, 8900, 10500Overall dimension A (mm): 1900, 2000, 2200, 2500, 2700, 3000, 3500, 3700, 4300, 4600Overall dimension B (mm): 965, 1170, 1370, 1420, 1700, 1850, 2070, 2270, 2570, 2750Overall dimension C (mm): 720, 810, 820, 860, 880, 950, 1020, 1050, 1160, 1300Overall dimension D (mm): 750, 800, 888, 1031, 1231, 1505, 1674, 1874, 2100, 2200Overall dimension E (mm): 1030, 1150, 1233, 1300, 1500, 1700, 1950, 2400, 2850, 3100
Notes
This model is available in high-strength magnetic versions:
Type T1: Magnetic field strength ≥ 90 mT
Type T2: Magnetic field strength ≥ 120 mT
Type T3: Magnetic field strength ≥ 150 mT

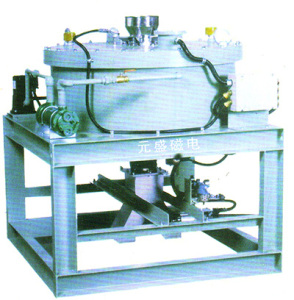

Electromagnetic King Powder Iron Remover / DCW Series Dry Powder Electromagnetic Separator
Model: Standard type: DCFJ-150, DCFJ-250, DCFJ-300High magnetic force type: DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Max. processing capacity (T/H): 5, 15, 20, 5, 15, 20Weight (kg): 200, 400, 450, 800, 1200, 1400Filter outer diameter (mm): 145, 245, 295, 145, 245, 295Max. number of filter sheets: 13, 15, 15, 13, 15, 15Insulating oil volume (L): 18, 50, 50, 60, 70, 70Control cabinet dimensions (mm):Standard type: 300 × 400 × 540High magnetic force type: 350 × 500 × 600
RCDA Series Air-Cooled Suspended Electromagnetic Separator
Model: RCDA-4, RCDA-5, RCDA-6, RCDA-6.5, RCDA-8, RCDA-10, RCDA-12, RCDA-14, RCDA-16, RCDA-18, RCDA-20
Parameters: Applicable belt width (mm): 400, 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Rated suspension height h (mm): 100, 150, 180, 200, 250, 300, 350, 400, 450, 500, 550Material thickness ≤ (mm): 70, 110, 130, 150, 200, 250, 300, 350, 400, 450, 500Excitation power ≤ (kW): 0.6, 1.0, 1.6, 2.0, 4.0, 6.0, 8.0, 10, 15, 20, 25Magnetic field strength ≥ (mT): 50, 60, 60, 70, 70, 70, 70, 70, 70, 70, 70Fan power ≤ (kW): 0.15, 0.15, 0.15, 0.37, 0.37, 0.45, 0.45, 0.8, 0.8, 1.3, 1.3Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, ContinuousWeight (kg): 350, 450, 620, 750, 980, 1330, 1950, 2870, 3800, 4500, 6900Overall dimension A (mm): 620, 710, 910, 990, 1080, 1400, 1600, 1910, 2010, 2360, 2560Overall dimension B (mm): 400, 500, 600, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Overall dimension C (mm): 360, 450, 480, 500, 600, 670, 750, 780, 810, 930, 980Overall dimension D·E (mm): 240, 340, 400, 450, 600, 800, 1000, 1200, 1400, 1600, 1800
RCDB/PDC/RCDY Series Dry Electromagnetic Separator (Disc Type / Round Type)
Model: RCDB-4, RCDB-5, RCDB-6, RCDB-6.5, RCDB-8, RCDB-10, RCDB-12, RCDB-14, RCDB-16, RCDB-18, RCDB-20
Parameters: Applicable belt width (mm): 400, 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Rated suspension height h (mm): 120, 150, 180, 200, 250, 300, 350, 400, 450, 500, 500Material thickness ≤ (mm): 70, 100, 130, 150, 200, 250, 300, 350, 400, 450, 500Magnetic field strength ≥ (mT): 50, 60, 63, 70, 70, 70, 70, 70, 70, 70, 70Excitation power ≤ (kW): 0.6, 1.0, 1.6, 2.0, 3.6, 5.0, 6.8, 9.0, 13, 18, 20Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, ContinuousWeight (kg): 300, 430, 580, 680, 950, 1560, 2250, 2950, 4800, 6900, 7600Overall dimension A (mm): 500, 610, 710, 820, 960, 1200, 1400, 1650, 1900, 2200, 2400Overall dimension B (mm): 240, 280, 280, 280, 310, 310, 310, 405, 460, 530, 550Overall dimension C (mm): 280, 325, 325, 325, 355, 360, 365, 485, 540, 610, 650
RCDB-T High-strength Magnetic Type
RCDB-T high magnetic strength dry electromagnetic iron remover:
Type T1: 90 mT
Type T2: 120 mT
Type T3: 150 mT
RCDF Series Oil-Cooled Self-Cleaning Electromagnetic Separator
Model: RCDF-5, RCDF-6, RCDF-6.5, RCDF-8, RCDF-10, RCDF-12, RCDF-14, RCDF-16, RCDF-18, RCDF-20
Parameters: Applicable belt width (mm): 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Rated suspension height h (mm): 150, 180, 200, 250, 300, 350, 400, 450, 500, 500Material thickness ≤ (mm): 100, 130, 150, 200, 250, 300, 350, 400, 450, 500Excitation power ≤ (kW): 1.2, 1.8, 2.0, 3.3, 4.7, 6.8, 8.9, 13.5, 18, 22Magnetic field strength ≥ (mT): 60, 60, 70, 70, 70, 70, 70, 70, 70, 70Drive power ≤ (kW): 1.2, 1.5, 2.2, 2.2, 3.0, 4.0, 4.0, 5.5, 5.5, 5.5Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Weight (kg): 1200, 1600, 1900, 2600, 3650, 4550, 6390, 7950, 9000, 9400Overall dimension A (mm): 1900, 2100, 2200, 2350, 3100, 3250, 3500, 3650, 3850, 3950Overall dimension B (mm): 900, 1000, 1050, 1150, 1400, 1500, 1945, 2010, 2400, 2800Overall dimension C (mm): 800, 850, 900, 970, 1080, 1200, 1300, 1400, 1500, 1600Overall dimension D (mm): 650, 700, 750, 810, 810, 940, 940, 940, 940, 940Overall dimension E (mm): 1050, 1170, 1270, 1420, 1580, 1780, 1950, 2180, 2315, 2400
CFLT Series Electromagnetic Pulley
Model: CFLT-50/50, CFLT-50/65, CFLT-50/80, CFLT-80/100, CFLT-80/120, CFLT-100/140
Parameters: Pulley diameter (mm): 500, 500, 500, 800, 800, 1000Applicable belt width (mm): 500, 650, 800, 1000, 1200, 1400Excitation power ≤ (kW): 1, 1.5, 2, 2.5, 3.5, 5.5Rotating speed (r.p.m): 60, 60, 60, 60, 47, 47Torque (N.M): 1750, 2100, 2750, 4500, 8000, 8000Weight (Kg): 610, 920, 1170, 1500, 2050, 4050Overall & installation dimension A (mm): 608, 705, 950, 1140, 1400, 1700Overall & installation dimension B (mm): 850, 1000, 1300, 1500, 1750, 2000Overall & installation dimension C (mm): 185, 185, 185, 225, 225, 225Overall & installation dimension E (mm): 225, 240, 260, 290, 330, 400Overall & installation dimension F (mm): 205, 221, 237, 251, 267, 295Overall & installation dimension d (mm): 55, 60, 70, 90, 100, 110
RCDE Series Oil-Cooled Suspended Electromagnetic Separator
Model: RCDE-4, RCDE-5, RCDE-6, RCDE-6.5, RCDE-8, RCDE-10, RCDE-12, RCDE-14, RCDE-16, RCDE-18, RCDE-20, RCDE-22
Parameters: Applicable belt width (mm): 400, 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200Rated suspension height h (mm): 120, 150, 180, 200, 250, 300, 350, 400, 450, 500, 550, 600Material thickness ≤ (mm): 70, 100, 130, 150, 200, 250, 300, 350, 400, 450, 500, 550Magnetic field strength ≥ (mT): 55, 60, 60, 70, 70, 70, 70, 70, 70, 70, 70, 70Excitation power ≤ (kW): 0.6, 1.0, 1.5, 2.0, 3.0, 4.5, 6.0, 8.5, 12.5, 18, 22, 27Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, ContinuousWeight (kg): 300, 500, 650, 750, 1150, 1400, 2780, 4200, 5700, 7300, 8500, 10500Overall dimension A (mm): 650, 750, 850, 900, 1050, 1350, 1500, 1800, 2100, 2260, 2450, 2700Overall dimension B (mm): 400, 500, 600, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200Overall dimension C (mm): 620, 730, 760, 830, 850, 950, 1050, 1100, 1200, 1300, 1400, (not provided)Overall dimension D.E (mm): 360, 460, 560, 610, 760, 940, 1160, 1360, 1540, 1740, 1940, (not provided)
RCDE Series Oil-Cooled Suspended Electromagnetic Separator
Model: RCDE-4, RCDE-5, RCDE-6, RCDE-6.5, RCDE-8, RCDE-10, RCDE-12, RCDE-14, RCDE-16, RCDE-18, RCDE-20, RCDE-22
Parameters: belt width range: 400–2200 mm
suspension height range: 100–600 mm
magnetic field intensity: 50–150 mT (500–1500 Gs)
material thickness range: 60–550 mm
excitation power range: 0.6–27 kW
belt speed: ≤4.5 m/s
weight range: 300–10500 kg
temperature: -25°C to +40°C
protection: IP54 (fully sealed, dustproof, rainproof, corrosion-resistant)
RCDD Series Self-Cleaning Disc Electromagnetic Separator
Model: RCDD-5, RCDD-6, RCDD-6.5, RCDD-8, RCDD-10, RCDD-12, RCDD-14, RCDD-16, RCDD-18
Parameters: Applicable belt width (mm): 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800Rated suspension height h (mm): 150, 180, 200, 250, 300, 350, 400, 450, 500Material thickness ≤ (mm): 100, 120, 150, 200, 250, 300, 350, 400, 450Excitation power ≤ (kW): 1.2, 2.0, 3.0, 4.0, 6.0, 8.0, 12.0, 14.0, 20.0Magnetic field strength ≥ (mT): 60, 60, 70, 70, 70, 70, 71, 71, 73Drive power ≤ (kW): 1.5, 1.5, 2.2, 2.2, 3.0, 3.0, 4.0, 4.0, 5.5Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Weight (kg): 950, 1380, 1490, 1770, 2380, 3170, 4800, 6300, 7800Overall dimension A (mm): 2020, 2140, 2275, 2540, 2750, 3000, 3500, 3900, 4400Overall dimension B (mm): 1040, 1100, 1190, 1480, 1635, 1800, 2050, 2450, 2850Overall dimension C (mm): 775, 800, 820, 865, 940, 1010, 1050, 1180, 1290Overall dimension D (mm): 800, 900, 990, 1000, 1250, 1500, 1850, 2200, 2500Overall dimension E (mm): 1000, 1100, 1250, 1350, 1400, 1700, 2000, 2350, 2800
RCY-Q Series Light Permanent Magnetic Belt Iron Remover / Light Type Overband Magnetic Separator
Model: RCY-Q40, RCY-Q50, RCY-Q6, RCY-Q80, RCY-Q100
Parameters: Applicable belt width (mm): 400, 500, 600, 800, 1000Rated suspension height h (mm): 100, 150, 200, 250, 300Magnetic induction intensity ≥ (mT): 50, 50, 50, 60, 60Applicable belt speed (m/s): 2.0, 2.5, 2.5, 3.1, 4.0Iron absorption capacity (mm): 0.1–5, 0.1–5, 0.1–5, 0.1–10, 0.1–10Duty cycle: Continuous, Continuous, Continuous, Continuous, ContinuousDrive motor power (kW): 0.75, 0.75, 1.1, 1.5, 2.2Main dimension A (mm): 1270, 1322, 1545, 1712, 1882Main dimension B (mm): 840, 1006, 1150, 1385, 1535Main dimension C (mm): 540, 615, 1100, 972, 735Main dimension D (mm): 1050, 622, 1300, 1032, 1122Main dimension E (mm): 580, 672, 830, 110, 111Main dimension F (mm): 270, 270, 640, 270, 120Weight (kg): 380, 490, 640, 850, 1130
RCYP-Ⅱ Series Self-Cleaning Permanent Magnetic Separator
Model: RCTPⅡ-5, RCTPⅡ-6, RCTPⅡ-6.5, RCTPⅡ-8, RCTPⅡ-10, RCTPⅡ-12, RCTPⅡ-14, RCTPⅡ-16, RCTPⅡ-18
Parameters: Applicable belt width (mm): 500, 600, 650, 800, 1000, 1200, 1400, 1600, 1800Rated suspension height h (mm): 150, 175, 200, 250, 300, 350, 400, 450, 500Magnetic field strength ≥ (mT): 60, 60, 70, 70, 70, 70, 70, 72, 72Material thickness ≤ (mm): 80, 125, 150, 200, 250, 300, 350, 400, 450Drive power ≤ (kW): 1.5, 1.5, 1.5, 2.2, 3.0, 4.0, 4.0, 5.5, 7.5Applicable belt speed ≤ (m/s): 4.5, 4.5, 4.5, 4.5, 4.5, 4.5, 4.5, 4.5, 4.5Weight (kg): 780, 920, 1060, 1320, 2080, 2950, 3821, 5200, 8150Overall dimension A (mm): 1550, 1700, 1750, 1940, 2170, 2450, 2680, 2850, 3380Overall dimension B (mm): 850, 895, 895, 935, 1050, 1140, 1140, 1215, 1290Overall dimension C (mm): 936, 1020, 1075, 1280, 1530, 1740, 1920, 2140, 2420Overall dimension D (mm): 950, 1000, 1050, 1200, 1400, 1500, 1600, 1750, 2010Overall dimension E (mm): 755, 835, 888, 1080, 1315, 1510, 1780, 1860, 2120

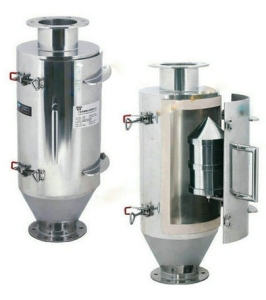

Permanent Magnetic Drum Separator / Magnetic Drum
Model: Main Type: Standard Type
Parameters: Standard flange caliber: DN50, DN65, DN100, DN150, DN200, DN250, DN300, DN400, DN500, DN600, DN700Corresponding standard height (mm): 380, 540, 586, 655, 760, 850, 880, 1100, 1200, 1450, 1650

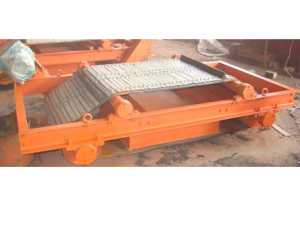

Armored Permanent Magnetic Belt Separator
Model: RCY-K50, RCY-K65, RCY-K80, RCY-K100, RCY-K120, RCY-K140
Parameters: Applicable belt width (mm): 500, 650, 800, 1000, 1200, 1400Rated suspension height (mm): 150, 200, 250, 300, 350, 400Magnetic induction at rated height ≥ (mT): ≥70, ≥70, ≥70, ≥70, ≥70, ≥70Applicable belt speed ≤ (m/s): ≤4.5, ≤4.5, ≤4.5, ≤4.5, ≤4.5, ≤4.5Iron absorption capacity (kg): 0.1–36, 0.1–36, 0.1–36, 0.1–36, 0.1–36, 0.1–36Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous, ContinuousDrive motor power (kW): 1.5, 2.2, 2.2, 3.0, 4.0, 4.0Overall dimension A (mm): 1900, 2050, 2350, 2660, 2860, 3225Overall dimension B (mm): 735, 780, 796, 920, 1010, 1050Overall dimension C (mm): 935, 1030, 1280, 1550, 1720, 1980Overall dimension D (mm): 950, 1100, 1300, 1400, 1550, 1800Overall dimension E (mm): 753, 753, 1088, 1335, 1515, 1755Overall dimension F (mm): 451, 451, 451, 451, 516, 516Weight (kg): 750, 1200, 1400, 2120, 3350, 4450
Model (High-Strength Version T1/T2/T3)
RCY-K65 (T1/T2/T3), RCY-K80 (T1/T2/T3), RCY-K100 (T1/T2/T3), RCY-K120 (T1/T2/T3), RCY-K140 (T1/T2/T3)
Parameter (High-Strength Version)
Applicable belt width (mm): 650, 800, 1000, 1200, 1400Rated suspension height (mm): 200, 250, 300, 350, 400Magnetic induction at rated height (mT):
T1: 90, 90, 90, 90, 90
T2: 120, 120, 120, 120, 120
T3: 150, 150, 150, 150, 150
Applicable belt speed ≤ (m/s): ≤4.5, ≤4.5, ≤4.5, ≤4.5, ≤4.5
Iron absorption capacity (kg): 0.1–50, 0.1–50, 0.1–50, 0.1–50, 0.1–50
Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous
Drive motor power (kW):
RCY-K65 (T1): 1.5; (T2/T3): 2.2
RCY-K80 (T1/T2): 2.2; (T3): 3.0
RCY-K100 (T1/T2): 3.0; (T3): 4.0
RCY-K120 (T1/T2): 4.0; (T3): 5.5
RCY-K140 (T1): 4.0; (T2/T3): 5.5
Overall dimension A (mm):
RCY-K65: 2160, 2160, 2310
RCY-K80: 2350, 2350, 2520
RCY-K100: 2660, 2660, 2760
RCY-K120: 2900, 2900, 2900
RCY-K140: 3225, 3225, 3340
Overall dimension B (mm):
RCY-K65: 1075, 1075, 1075
RCY-K80/100: 1280, 1540, 1540
RCY-K120/140: 1730, 1980, 1980
Overall dimension C (mm):
RCY-K65: 795, 795, 795
RCY-K80/100: 795, 950, 950
RCY-K120/140: 970, 1180, 1180
Overall dimension D (mm): 1200, 1300, 1400, 1600, 1900
Overall dimension E (mm): 890, 1090, 1335, 1515, 1750
Overall dimension F (mm): 451, 451, 451, 516, 516
Weight (kg):
RCY-K65: 1300, 1420, 1750
RCY-K80: 1920, 2180, 2820
RCY-K100: 2350, 2700, 3680
RCY-K120: 3250, 4100, 5150
RCY-K140: 4800, 5620, 7450
RCGZ Series Self-Cleaning Pipeline Permanent Magnetic Separator
Model: RCGZ-100, RCGZ-150, RCGZ-200, RCGZ-400, RCGZ-600, RCGZ-800, RCGZ-1000
Parameters: Processing capacity (t/h): 80-120, 130-160, 180-220, 350-450, 550-650, 720-880, 900-1100
Iron removal method: Continuous automatic, Continuous automatic, Continuous automatic, Continuous automatic, Continuous automatic, Continuous automatic, Continuous automaticRemovable iron particle size (mm): ≤30, ≤50, ≤80, ≤100, ≤120, ≤150, ≤200Motor power (kW): 0.37, 0.37, 0.55, 1.1, 1.5, 2.2, 3.0Power supply (V): 380, 380, 380, 380, 380, 380, 380Equipment weight (kg): 320, 380, 560, 1100, 1500, 1800, 2200
RCYC(D) Series Self-Cleaning Permanent Magnetic Separator / Belt Self-Discharging Permanent Magnet Iron Remover
Model: RCYD(C)-5, RCYD(C)-6, RCYD(C)-6.5, RCYD(C)-8, RCYD(C)-10, RCYD(C)-12, RCYD(C)-14, RCYD(C)-16, RCYD(C)-18, RCYD(C)-20
Parameters: Applicable belt width (mm): 500, 600/650, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000Rated suspension height h (mm): 150, 180, 200, 250, 300, 350, 400, 450, 500, 550Material thickness ≤ (mm): 100, 130, 150, 200, 250, 300, 350, 400, 450, 500Magnetic field strength ≥ (mT): 65, 65, 70, 70, 70, 70, 70, 70, 75, 75Drive power ≤ (kW): 1.5, 1.5, 1.5, 2.2, 3.0, 4.0, 4.0, 5.5, 5.5, 7.5Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Duty cycle: Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, Continuous, ContinuousWeight (kg): 750, 920, 1200, 1400, 2120, 3350, 4450, 6200, 8100, 9700Overall dimension A (mm): 1900, 2050, 2165, 2350, 2660, 2860, 3225, 3350, 3580, 3800Overall dimension B (mm): 735, 780, 780, 786, 920, 1010, 1050, 1180, 1210, 1300Overall dimension C (mm): 935, 1030, 1080, 1280, 1550, 1720, 1980, 2160, 2450, 2700Overall dimension D (mm): 753, 753, 888, 1088, 1335, 1515, 1755, 1850, 2130, 2410Overall dimension E (mm): 950, 1100, 1200, 1300, 1400, 1550, 1800, 1950, 2200, 2400
High-strength magnetic optional type (RCYC/RCYD-T series):
Type T1: 90 mT
Type T2: 120 mT
Type T3: 150 mT
RCYG Series Fine Iron Remover
Model: RCYG-50, RCYG-100, RCYG-200, RCYG-300, RCYG-400
Parameters: Productivity (T/H): ≤50, ≤100, ≤200, ≤300, ≤400
Magnetic field strength (Gs): ≥4000, ≥4200, ≥4500, ≥4500, ≥4500
Motor power (kW): 1.1, 1.5, 2.2, 3, 4
Voltage (V): 380, 380, 380, 380, 380
Installation angle: 50°-60°, 50°-60°, 50°-60°, 50°-60°, 50°-60°
Rotating speed (r/min): 17-82, 17-82, 17-82, 17-82, 17-82
Weight (kg): 800, 1100, 1300, 1450, 1600
Overall dimension L (mm): 1200, 1560, 1850, 1950, 2100
Overall dimension W (mm): 1200, 1350, 1490, 1590, 1670
Overall dimension H (mm): 1000, 1200, 1300, 1400, 1500
Manual Cleaning Permanent Magnetic Separator / Hand-Cleaning Permanent Magnet Iron Remover
Model: RCYP-4, RCYP-5, RCYP-6, RCYP-6.5, RCYP-8, RCYP-10, RCYP-12, RCYP-14
Parameters: Applicable belt width (mm): 400, 500, 600, 650, 800, 1000, 1200, 1400Rated suspension height (mm): 125, 150, 175, 200, 250, 300, 350, 400Magnetic field strength (≤ mT): 50, 60, 60, 70, 70, 70, 70, 70Applicable material thickness (≤ mm): 70, 90, 125, 150, 200, 250, 300, 350Weight (kg): 250, 580, 680, 820, 1500, 2300, 3300, 3800Suspension dimension D×E (mm): 470×340, 570×440, 670×550, 715×550, 915×750, 1050×900, 1250×1140, 1450×1350Overall dimension A×B×C (mm): 1100×910×500, 1200×1020×550, 1300×1120×560, 1380×1170×550, 1630×1300×560, 1765×1500×560, 1960×1750×580, 2180×1950×620Magnetic system dimension F×G (mm): 500×500, 600×600, 700×700, 750×750, 950×950, 1100×1100, 1300×1340, 1500×1550
RCT(RCTG) Series Permanent Magnetic Roller
Model: RCT(RCTG) Series Permanent Magnetic Drum
Parameters: Surface magnetic induction intensity (≈GS): 1500, 1500, 1550, 1600, 1500, 1550, 1600, 1550, 1650, 1800, 1700, 1700, 1800, 1800, 1800, 1800Material thickness ≤ (mm): 40, 60, 80, 100, 70, 100, 130, 100, 130, 150, 130, 170, 100, 200, 230, 260Belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Weight (kg): 150, 198, 250, 370, 245, 405, 520, 610, 720, 980, 910, 1200, 1500, 1890, 2160, 2800Overall dimension A (mm): 728, 850, 850, 850, 1000, 1000, 1000, 1300, 1300, 1300, 1500, 1500, 1750, 1750, 2000, 2150Overall dimension B (mm): 400, 500, 500, 500, 650, 650, 650, 800, 800, 800, 1000, 1000, 1200, 1200, 1400, 1600Overall dimension Dφ (mm): 320, 320, 400, 500, 320, 400, 500, 500, 650, 800, 650, 800, 650, 1000, 1000, 1250Overall dimension L (mm): 500, 600, 600, 600, 750, 750, 750, 950, 950, 950, 1150, 1150, 1400, 1400, 1600, 1800Overall dimension L1 (mm): 926, 1097, 1097, 1097, 1280, 1280, 1280, 1580, 1661, 1661, 1861, 1954, 2195, 2270, 2446, 2600Overall dimension K (mm): 100, 115, 115, 115, 135, 135, 135, 135, 175, 175, 175, 215, 215, 255, 255, 255Overall dimension dφ (mm): 45, 50, 55, 55, 65, 65, 70, 70, 70, 90, 90, 90, 110, 110, 110, 120Overall dimension h (mm): 48.5, 53.5, 60, 60, 69, 69, 76, 76, 76, 76, 97, 97, 119, 119, 119, 129Overall dimension b (mm): 14, 14, 16, 16, 18, 18, 20, 20, 20, 24, 24, 24, 32, 32, 32, 32
Optional magnetic field strength:2000GS, 3000GS, 3800GS, 4500GS, 6000GS, 8000GSNote: Please specify the required magnetic strength when ordering.
RCYB Series Suspended Permanent Magnetic Separator
Model: RCYB-4, RCYB-5, RCYB-6, RCYB-6.5, RCYB-8, RCYB-10, RCYB-12, RCYB-14, RCYB-16
Parameters: Applicable belt width (mm): 400, 500, 600/650, 650, 800, 1000, 1200, 1400, 1600Rated suspension height h (mm): 130, 150, 180, 200, 250, 300, 350, 400, 450Material thickness ≤ (mm): 80, 100, 130, 150, 200, 250, 300, 350, 400Magnetic field strength ≥ (mT): 45, 50, 60, 65, 70, 70, 70, 70, 70Applicable belt speed ≤ (m/s): 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5, 2.5Weight (kg): 115, 190, 310, 460, 690, 1180, 1750, 2360, 2880Overall dimension L (mm): 400, 500, 600, 650, 950, 1100, 1300, 1500, 1800Overall dimension D (mm): 300, 400, 500, 600, 950, 1000, 1400, 1500, 1800Overall dimension H (mm): 260, 260, 280, 300, 300, 380, 420, 420, 460
High-strength magnetic optional type:Type T1: 90 mTType T2: 120 mTType T3: 150 mT

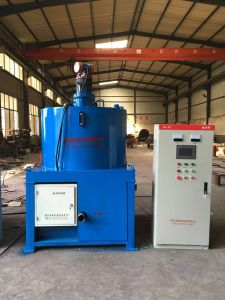

Electromagnetic King Slurry Iron Remover / DNCXJ Series Wet Electromagnetic Separator
Model: Electromagnetic King slurry iron remover
Parameters: Magnetic field strength: up to 30000 GSCooling mode: Pure oil insulation + water circulation coolingCore component: Imported partsIron removal efficiency: up to 98%Magnetic chip quantity: 30 pieces of magnetic conductive chipsDischarging method: Power off demagnetization, water flushing automatic iron dischargingApplicable mesh range: 8 mesh – 1000 meshApplicable materials: Ceramic glaze slurry, mud slurry, pigment, feldspar powder, kaolin, quartz sand, coal water slurry, emulsified oil, chemical raw materials, fluid food materialsRemovable impurities: Mechanical iron, partial ferric oxide (Fe₂O₃)Equipment advantages: Low energy consumption, simple operation, convenient and fast iron discharge

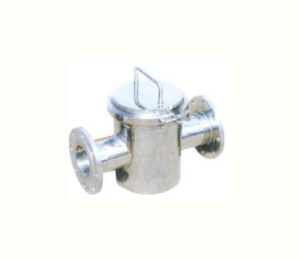

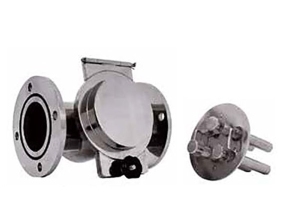

RCYA-5 In-Line Permanent Magnetic Separator / RCYA-5 Pipeline Permanent Magnetic Iron Remover
Model: RCYA-5
Parameters: Applicable material: Liquid and dilute slurryApplicable industry: Pharmaceutical, chemical, paper making, non-metallic ore, refractory materialMagnetic force: 10-25 times of conventional ferrite permanent magnetStructure form: Pipe type, grid type, inter type, plate type, roller type, hump box typeCaliber specifications (mm): 108, 159, 219, 259, 300Height H (mm): 280, 350, 380, 400, 470Length L (mm): 450, 500, 600, 650, 700Width B (mm): 219, 280, 330, 360, 430Feature: Easy to disassemble, inspect and clean

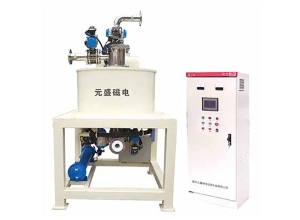

YSDCS Series Wet Electromagnetic Slurry Iron Remover
Model: YSDS-16, YSDS-16-T1, YSDS-16-T2, YSDS-20, YSDS-20-T1, YSDS-20-T2, YSDS-25, YSDS-25-T1, YSDS-25-T2S, YSDS-30, YSDS-30-T1, YSDS-30-T2, YSDS-35, YSDS-35-T1, YSDS-35-T2, YSDS-40, YSDS-40-T1, YSDS-40-T2, YSDS-16-G1, YSDS-16-G2, YSDS-20-G1, YSDS-20-G2, YSDS-25-G1, YSDS-25-G2, YSDS-30-G1, YSDS-30-G2, YSDS-35-G1, YSDS-35-G2
Parameters: Magnetic induction (Gauss): 16000 / 17000 / 18000 / 19000 / 20000Input voltage: AC380V 50Hz, Three-phase four-wireExcitation power (kW): ≤3.9 / ≤5.3 / ≤6.8 / ≤6.2 / ≤6.8 / ≤7.8 / ≤7.0 / ≤8.1 / ≤9.5 / ≤8.5 / ≤10.0 / ≤12.0 / ≤10.5 / ≤12.5 / ≤15.6 / ≤12.5 / ≤15.6 / ≤19.6 / 7.8 / 9.2 / 9.5 / 11.5 / 12.0 / 15.1 / 15.1 / 19.2 / 19.2 / 24.5Production capacity (t/h): 1-2 / 1-2 / 1-2 / 2-5 / 2-5 / 2-5 / 4-8 / 4-8 / 4-8 / 8-15 / 8-15 / 8-15 / 10-20 / 10-20 / 10-20 / 15-30 / 15-30 / 15-30 / 1-2 / 1-2 / 2-5 / 2-5 / 4-8 / 4-8 / 8-15 / 8-15 / 10-20 / 10-20Mainframe weight (kg): 750 / 850 / 960 / 970 / 1010 / 1230 / 1250 / 1450 / 1660 / 1620 / 1810 / 2040 / 2050 / 2280 / 2530 / 2530 / 2780 / 3080 / 1080 / 1300 / 1480 / 1750 / 1940 / 2270 / 2480 / 2840 / 3130 / 3420Adapt material:
a. 200 mesh fine powder or particles
b. Nonmagnetic material
c. Concentration ≤ 30%
d. Iron content lower than 1%
Note: The system supporting accessories can be customized according to user requirements.

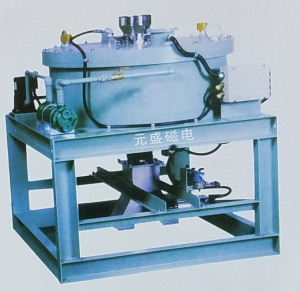

Electromagnetic Dry Powder Separator / Electromagnetic Dry Powder Magnetic Separator
Model: DCFJ-150, DCFJ-250, DCFJ-300, DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Max processing capacity (t/h): 5, 15, 20, 5, 15, 20
Weight (kg): 200, 400, 450, 800, 1200, 1400
Filter screen outer diameter (mm): 145, 245, 295, 145, 245, 295
Max number of filter screens: 13, 15, 15, 13, 15, 15
Insulating oil volume (L): 18, 50, 50, 60, 70, 70
Control panel dimension (mm): 300 × 400 × 540 (Standard type), 350 × 500 × 600 (High magnetic force type)

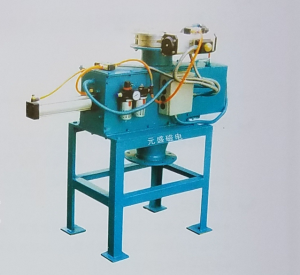

Pneumatic Self-Cleaning Magnetic Separator / Pneumatic Iron Remover
Model: DCFJ-150, DCFJ-250, DCFJ-300, DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Max processing capacity (t/h): 5, 15, 20, 5, 15, 20
Weight (kg): 200, 400, 450, 800, 1200, 1400
Filter screen outer diameter (mm): 145, 245, 295, 145, 245, 295
Max number of filter screens: 13, 15, 15, 13, 15, 15
Insulating oil volume (L): 18, 50, 50, 60, 70, 70Control
panel dimension (mm): 300 × 400 × 540 (Standard type), 350 × 500 × 600 (High magnetic force type)

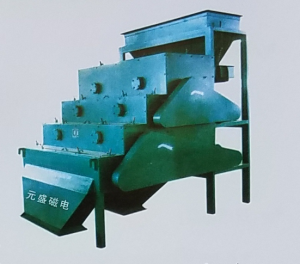

Rare Earth Roll Magnetic Separator / Rare Earth Roll Separator
Model: DCFJ-150, DCFJ-250, DCFJ-300, DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Max processing capacity (t/h): 5, 15, 20, 5, 15, 20Weight (kg): 200, 400, 450, 800, 1200, 1400Filter screen outer diameter (mm): 145, 245, 295, 145, 245, 295Max number of filter screens: 13, 15, 15, 13, 15, 15Insulating oil volume (L: 18, 50, 50, 60, 70, 70Control panel size (mm): 300 × 400 × 540 (Standard type), 350 × 500 × 600 (High magnetic force type)

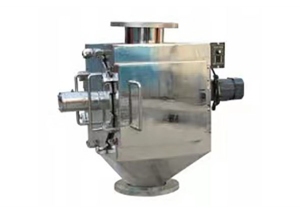

Powder Iron Remover / Dry Powder Magnetic Separator
Model: CGB type
Parameters: Product name: CGB rotary semi-automatic magnetic separatorApplicable materials: Caking or adhesive materials, dry powder, fine particles, flake materialsParticle size: less than 6 mmMesh range: 10–500 meshDriving mode: Motor driven rotary magnetic rodCore function: Prevent material blockage, sufficient contact between material and magnetInstallation method: Free fall pipeline series connection, single machine for bulk materialsIron discharging method: Manual cleaningStandard caliber: 150 mm, 200 mm, 250 mm, 300 mm, 350 mm, 400 mm, 450 mm, 500 mmCustomization: Custom size availableApplication industry: Food, chemical, pharmaceutical, plastic, wood, recycling, packaging, quartz sand, potassium feldspar, mica, micro-powder, fly ash

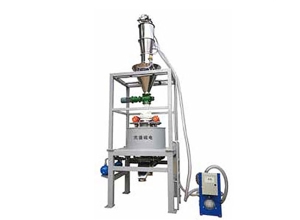

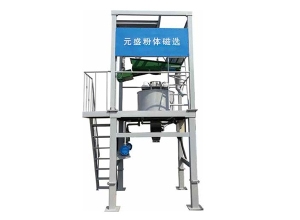

YSDC Series Fully Automatic Integrated Dry Electromagnetic Powder Iron Removal System
Model: YSDC-16, YSDC-16-T1, YSDC-16-T2, YSDC-20, YSDC-20-T1, YSDC-20-T2, YSDC-25, YSDC-25-T1, YSDC-25-T2, YSDC-30, YSDC-30-T1, YSDC-30-T2, YSDC-35, YSDC-35-T1, YSDC-35-T2, YSDC-40, YSDC-40-T1, YSDC-40-T2, YSDC-16-G1, YSDC-16-G2, YSDC-20-G1, YSDC-20-G2, YSDC-25-G1, YSDC-25-G2, YSDC-30-G1, YSDC-30-G2, YSDC-35-G1, YSDC-35-G2
Parameters: Magnetic induction (Gauss): 16000 / 17000 / 18000 / 19000 / 20000Input voltage: AC380V 50Hz, Three-phase four-wireExcitation power (kW): ≤3.9 / ≤5.3 / ≤6.8 / ≤6.2 / ≤6.8 / ≤7.8 / ≤7.0 / ≤8.1 / ≤9.5 / ≤8.5 / ≤10.0 / ≤12.0 / ≤10.5 / ≤12.5 / ≤15.6 / ≤12.5 / ≤15.6 / ≤19.6 / 7.8 / 9.2 / 9.5 / 11.5 / 12.0 / 15.1 / 15.1 / 19.2 / 19.2 / 24.5Production capacity (t/h): 0.2-0.5 / 0.5-1.0 / 0.8-1.5 / 1.0-2.0 / 2.0-5.0 / 5.0-10.0 / 0.2-0.6Mainframe weight (kg): 850 / 950 / 1050 / 1090 / 1230 / 1350 / 1410 / 1620 / 1830 / 1800 / 1990 / 2220 / 2360 / 2610 / 2880 / 3010 / 3270 / 3600 / 1250 / 1450 / 1620 / 1920 / 2120 / 2510 / 2680 / 3070 / 3300 / 3700Adapt material:
a. 8-120 mesh fine powder or particles
b. Nonmagnetic material
c. Dry
d. Iron content lower than 1%
Note: The system supporting accessories can be customized according to user requirements.

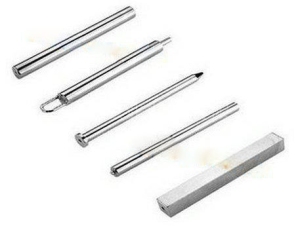

Magnetic Bar / Magnetic Grate (Magnetic Frame)
Model: Ordinary type, Easy-clean type, Round type, Square type
Parameters: Product name: Magnetic rod & magnetic frameSurface magnetic strength: above 12000 GSStandard magnetic rod diameter: Φ25 mmOuter pipe material: Seamless stainless steel pipeSurface treatment: Polished finishSanitary level: Food grade, pharmaceutical grade availableMounting structure: Pointed end, threaded hole (M6, M8, M10, M12), screw rod, lifting ringTemperature resistance: Normal temperature to 350℃ maximum working temperatureCustomization: Custom diameter, length and temperature resistanceOptional accessory: Baffle plate, flow guide rod for magnetic frame
Drawer Magnetic Separator / Drawer Magnet / Magnetic Drawer Filter
Model: Ordinary type, Easy-clean type, Single-layer, Multi-layer, Square interface, Round interface
Parameters: Product name: Drawer type iron removerApplicable materials: Good fluidity powder and granular materialsMagnetic material: High-strength permanent magnetSurface magnetic strength: above 12000 GSStandard magnetic rod diameter: Φ25 mmHousing material: 304 / 316 stainless steelSquare interface size: 200×200 mm ~ 400×400 mmRound interface size: DN150, DN200, DN250, DN300Connection form: Flange, quick connectorCustomization: Customized size and structure available

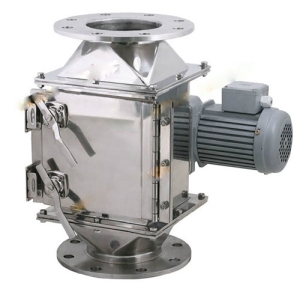

Electric Rotary Magnetic Separator
Model: Ordinary type, Easy-clean type, Square interface, Round interface
Parameters: Product name: Electric rotary iron removerApplicable materials: Poor fluidity, slightly viscous granular, powder and flake materialsMagnet material: High-strength permanent magnetSurface magnetic strength: above 12000 GSConnection type: Round or square flange interfaceRound standard size: DN150, DN200, DN250, DN300, DN350Square standard size: 200×200 mm, 250×250 mm, 300×300 mm, 350×350 mm, 400×400 mmStructural feature: Easy-clean optional designWorking advantage: Uniform material contact, higher iron removal efficiency

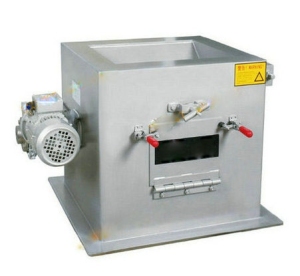

Electric Drum Magnetic Separator
Model: Self-discharging type
Parameters: Product type: Electric semi-magnetic drum iron removerApplicable materials: Powder, granular and flake materialsMagnetic core structure: Vertical divided into magnetic and non-magnetic semicirclesDrum material: Stainless steelDrum drive: Electric motor driveDrum speed: Adjustable by transmissionInstallation angle: AdjustableSurface magnetic strength: approx 5000 GSStandard magnetic core size: Φ400 mmCleaning method: Automatic iron unloading, no manual cleaningWorking principle: Iron impurities fall off automatically in non-magnetic areaFeature: Automatic sorting and purification for large-volume materials

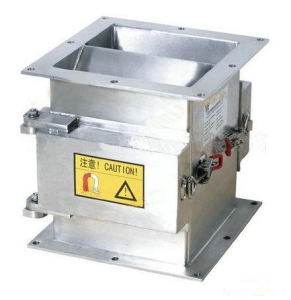

Magnetic Plate In-Line Separator
Model: DCFJ-150, DCFJ-250, DCFJ-300, DCFJ-150H, DCFJ-250H, DCFJ-300H
Parameters: Max processing capacity (t/h): 5, 15, 20, 5, 15, 20Weight (kg): 200, 400, 450, 800, 1200, 1400Filter screen outer diameter (mm): 145, 245, 295, 145, 245, 295Max number of filter screens: 13, 15, 15, 13, 15, 15Insulating oil volume (L): 18, 50, 50, 60, 70, 70Control panel dimension (mm): 300 × 400 × 540 (Standard type), 350 × 500 × 600 (High magnetic force type)

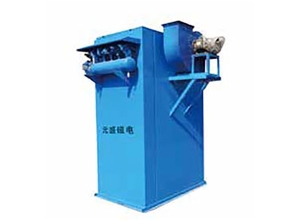

Electrostatic Precipitator
Model: YSDC series, YSDCG series, electrostatic precipitator
Parameters: YSDC series full automatic vacuum feeding dry electromagnetic iron separator system
YSDC series electromagnetic iron separator
YSDC series dry electromagnetic iron separator in series model for power processing
Electrostatic precipitator
YSDC series, YSDCG series, electrostatic precipitator
Model: YSDC Series
Parameters: YSDC series full automatic vacuum feeding dry electromagnetic iron separator system
YSDC series electromagnetic iron separator
YSDC series dry electromagnetic iron separator in series model for power processing
Electrostatic precipitator
YSDC Series Dry Tandem Electromagnetic Powder Iron Removal System
Model: YSDC series, YSDCG series, electrostatic precipitator
Parameters: YSDC series full automatic vacuum feeding dry electromagnetic iron separator system
YSDC series electromagnetic iron separator
YSDC series dry electromagnetic iron separator in series model for power processing
Electrostatic precipitator

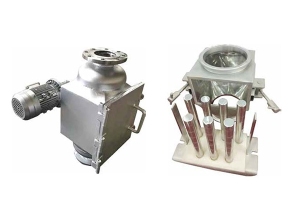

Rotary Grid Magnetic Separator
Model: YSXR1520, YSXR2025, YSXR2530, YSXR3035, YSXR3540
Parameters: Magnetic Performance: 8'000Gs–12'000GsMaterials of housing and other parts: 304 stainless steel / 316 stainless steelSurface finish: sand blastingCorresponding square version: YSXR200, YSXR250, YSXR300, YSXR350, YSXR400ΦA (Circle version): 150 mm, 200 mm, 250 mm, 300 mm, 350 mmH: 460 mm, 520 mm, 580 mm, 635 mm, 735 mm
In-Line Magnetic Separator
Model: YSXD25B, YSXD32B, YSXD40B, YSXD50B, YSXD65B, YSXD80B, YSXD100B, YSXD125B, YSXD150B, YSXD200B
Parameters: Magnetic strength: 8000Gs–12000GsHousing material: 304 stainless steel / 316 stainless steelSurface treatment: Sand blasting on outer housing, polishing on inner housingMagnet type: High-strength rare earth permanent magnetsCleaning design: Easy-clean structureGrade options: Food grade / sanitary grade availablePressure resistance: Anti-pressure designTemperature resistance: High-temperature resistant version availableOptional configuration: Thermal insulation type available

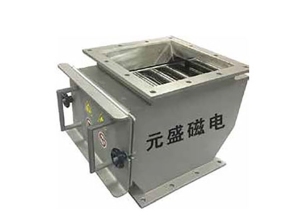

Magnetic Box Separator
Model: YSXF-18 / YSXF-24 / YSXF-28 / YSXF-30 / YSXF-34 / YSXF-37 / YSXF-42 / YSXF-45 / YSXF-50
Parameters: Capacity (Bran/Flour, t/h):
YSXF-18: 6.0 / 12.5 t/h
YSXF-24: 11.5 / 23 t/h
YSXF-28: 15.5 / 31 t/h
YSXF-30: 17 / 34 t/h
YSXF-34: 18.5 / 37 t/h
YSXF-37: 21 / 42 t/h
YSXF-42: 27 / 55 t/h
YSXF-45: 31.5 / 63 t/h
YSXF-50: 35 / 70 t/h
Inlet Size (B×A, mm):
YSXF-18: 180×180 mm
YSXF-24: 240×240 mm
YSXF-28: 280×280 mm
YSXF-30: 300×300 mm
YSXF-34: 340×340 mm
YSXF-37: 375×375 mm
YSXF-42: 425×425 mm
YSXF-37: 450×450 mm
YSXF-50: 500×500 mm
Overall Dimension (A×B×C, mm):
YSXF-18: 180×280×250 mm
YSXF-24: 240×330×250 mm
YSXF-28: 280×420×300 mm
YSXF-30: 300×420×300 mm
YSXF-34: 340×420×300 mm
YSXF-37: 375×450×300 mm
YSXF-42: 425×540×300 mm
YSXF-45: 450×540×300 mm
YSXF-50: 500×580×300 mm
Magnetic Strength: 8000Gs–12000Gs
Housing Material: 304 Stainless Steel / 316 Stainless Steel
Surface Treatment: Sand Blasting
Magnet Type: High-strength Rare Earth Permanent Magnets
Structure Options: Single/Double/Multi-layer Drawer Design
Industry Compliance: Food Grade / Sanitary Grade Optional
Cleaning Method: Easy-clean Structure, Manual/Pneumatic Cleaning Optional
Control Options: Air-actuated / Remote Control Optional
Connection Customization: Custom Reducer/Flange Connections Available
YSDCS Series Wet Electromagnetic Slurry Iron Remover
Model: YSDCS-16, YSDCS-16-T1, YSDCS-16-T2, YSDCS-20, YSDCS-20-T1, YSDCS-20-T2, YSDCS-25, YSDCS-25-T1, YSDCS-25-T2S, YSDCS-30, YSDCS-30-T1, YSDCS-30-T2, YSDCS-35, YSDCS-35-T1, YSDCS-35-T2, YSDCS-40, YSDCS-40-T1, YSDCS-40-T2, YSDCS-16-G1, YSDCS-16-G2, YSDCS-20-G1, YSDCS-20-G2, YSDCS-25-G1, YSDCS-25-G2, YSDCS-30-G1, YSDCS-30-G2, YSDCS-35-G1, YSDCS-35-G2
Parameters: Magnetic induction (Gauss): 16000 / 17000 / 18000 / 19000 / 20000Input voltage: AC380V 50Hz, Three-phase four-wireExcitation power (kW): ≤3.9 / ≤5.3 / ≤6.8 / ≤6.2 / ≤6.8 / ≤7.8 / ≤7.0 / ≤8.1 / ≤9.5 / ≤8.5 / ≤10.0 / ≤12.0 / ≤10.5 / ≤12.5 / ≤15.6 / ≤12.5 / ≤15.6 / ≤19.6 / 7.8 / 9.2 / 9.5 / 11.5 / 12.0 / 15.1 / 15.1 / 19.2 / 19.2 / 24.5Production capacity (t/h): 1-2 / 1-2 / 1-2 / 2-5 / 2-5 / 2-5 / 4-8 / 4-8 / 4-8 / 8-15 / 8-15 / 8-15 / 10-20 / 10-20 / 10-20 / 15-30 / 15-30 / 15-30 / 1-2 / 1-2 / 2-5 / 2-5 / 4-8 / 4-8 / 8-15 / 8-15 / 10-20 / 10-20Mainframe weight (kg): 750 / 850 / 960 / 970 / 1010 / 1230 / 1250 / 1450 / 1660 / 1620 / 1810 / 2040 / 2050 / 2280 / 2530 / 2530 / 2780 / 3080 / 1080 / 1300 / 1480 / 1750 / 1940 / 2270 / 2480 / 2840 / 3130 / 3420Adapt material:
a. 200 mesh fine powder or particles
b. Nonmagnetic material
c. Concentration ≤ 30%
d. Iron content lower than 1%
Note: The system supporting accessories can be customized according to user requirements.
YSDCG Series Dry Electromagnetic Powder Iron Remover
Model: YSDCG series
Parameters: Magnetic field strength in working chamber: 18000–20000 GaussCleaning time: Only 10 seconds for one-time iron dischargeCooling method: Forced oil circulation water coolingWorking state: Magnetic cavity in vibrating stateOperation control: PLC intelligent control (full-automatic type)Control interface: Color touch screen with manual operation panelProtection function: Real-time oil temperature monitoring and automatic control, with automatic alarm and shutdownOperation noise: Low noise with vibration and noise reduction measuresIron removal performance: Excellent effect on iron removal, can remove most weak magnetic impurities including Fe₂O₃Combination usage: Can be used singly or in multiple series/parallel combinationsCleaning operation: Convenient and quick cleaningCost performance: High cost performance
YSDC Series Fully Automatic Integrated Dry Electromagnetic Powder Iron Removal System
Model: YSDC-16, YSDC-16-TI, YSDC-16-T2, YSDC-20, YSDC-20-TI, YSDC-20-T2, YSDC-25, YSDC-25-TI, YSDC-25-T2, YSDC-30, YSDC-30-TI, YSDC-30-T2, YSDC-35, YSDC-35-TI, YSDC-35-T2, YSDC-40, YSDC-40-TI, YSDC-40-T2, YSDC-16-G1, YSDC-16-G2, YSDC-20-G1, YSDC-20-G2, YSDC-25-G1, YSDC-25-G2, YSDC-30-G1, YSDC-30-G2, YSDC-35-G1, YSDC-35-G2
Parameters: Magnetic induction (Gauss): 16000 / 17000 / 18000 / 19000 / 20000Input voltage: AC380V 50Hz, Three-phase four-wireExcitation power (kW): ≤3.9 / ≤4.6 / ≤5.5 / ≤6.8 / ≤7.8 / ≤8.1 / ≤8.5 / ≤10.0 / ≤10.5 / ≤12.0 / ≤12.5 / ≤15.6 / ≤19.6 / 7.8 / 9.2 / 9.5 / 11.5 / 12.0 / 15.1 / 18.2 / 19.2 / 24.5Production capacity (t/h): 0.2-0.5 / 0.5-1.0 / 0.8-1.5 / 1.0-2.0 / 2.0-5.0 / 5.0-10.0 / 0.2-0.6Mainframe weight (kg): 850 / 950 / 1050 / 1090 / 1230 / 1350 / 1410 / 1620 / 1830 / 1800 / 1990 / 2220 / 2360 / 2610 / 2880 / 3010 / 3270 / 3600 / 1250 / 1450 / 1620 / 1920 / 2120 / 2510 / 2680 / 3070 / 3300 / 3700Adapt material:
a. 8-120 mesh fine powder or particles
b. Non-magnetic material
c. Dry
d. Iron content lower than 1%
Note: The system supporting accessories can be customized according to user requirements.
Company Gallery
Certifications & Awards
Success Stories & Case Studies

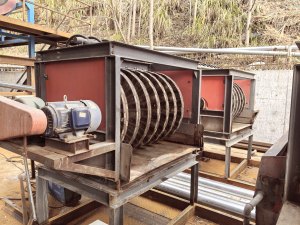

Ceramic processor / Battery material manufacturer / Quartz sand plant / Foundry / Steel plant
Iron removal >98% / Fe<5ppm / Impurity <10ppm / Safe operation / Recovery +15%
High intensity / Fully automatic / Deep penetration / Energy-saving / High-temp resistant
Company & Product Videos
Company Introduction & Factory Tour
⏱ Duration: 3:45 | 👁 Views: 15,230
Product Demonstration - Kestrel K-1
⏱ Duration: 5:12 | 👁 Views: 28,450
Technology Innovation Showcase
⏱ Duration: 4:30 | 👁 Views: 12,890
Customer Testimonials & Success Stories
⏱ Duration: 6:20 | 👁 Views: 9,650
Ready to Transform Your Life?
Contact us immediately to learn how our products meet your needs.
